Tutorial 4: TLS Heterogeneity in Clear-Cell Renal Cell Carcinoma

Tertiary lymphoid structures (TLS) are tumor-infiltrating lymphoid aggregates whose composition varies between patients and is associated with prognosis. This tutorial uses QueST to (1) train a niche embedding on 15 ccRCC Visium slices spanning 28 annotated TLS, (2) extract per-TLS embeddings, and (3) reveal three coherent TLS subtypes via UMAP.

import os
os.environ['CUDA_VISIBLE_DEVICES'] = '0'
import sys
import logging
import warnings
import numpy as np
import scanpy as sc
import matplotlib.pyplot as plt

import sys, os
import quest.utils as utils
from quest.trainer import QueSTTrainer

warnings.filterwarnings('ignore')
logger = logging.getLogger(__name__)
logging.basicConfig(level=logging.WARNING)

1. Load data

We use 15 of the 18 ccRCC slices (3 frozen slices frozen_c_5 / c_2 / c_23 are excluded due to lower quality). The remaining slices contain 28 annotated TLS in obs['tls_group'], with 'NO_TLS' for non-TLS spots.

dataset = 'ccRCC'
data_path = '../data/ccRCC'
model_path = '../results/ccRCC/model/quest_model.pth'
embedding_folder = '../results/ccRCC/embedding'

sample_ids = [
    'ffpe_c_2',  'ffpe_c_3',    'ffpe_c_4',   'ffpe_c_7',   'ffpe_c_20',  'ffpe_c_34',
    'ffpe_c_36', 'ffpe_c_39',   'ffpe_c_45',  'ffpe_c_51',  'frozen_a_3', 'frozen_a_15',
    'frozen_b_1','frozen_b_18', 'frozen_c_57',
]
adata_list = [sc.read_h5ad(f'{data_path}/{sid}.h5ad') for sid in sample_ids]
print(f'Loaded {len(adata_list)} slices, {sum(a.n_obs for a in adata_list)} spots total')

Loaded 15 slices, 50462 spots total

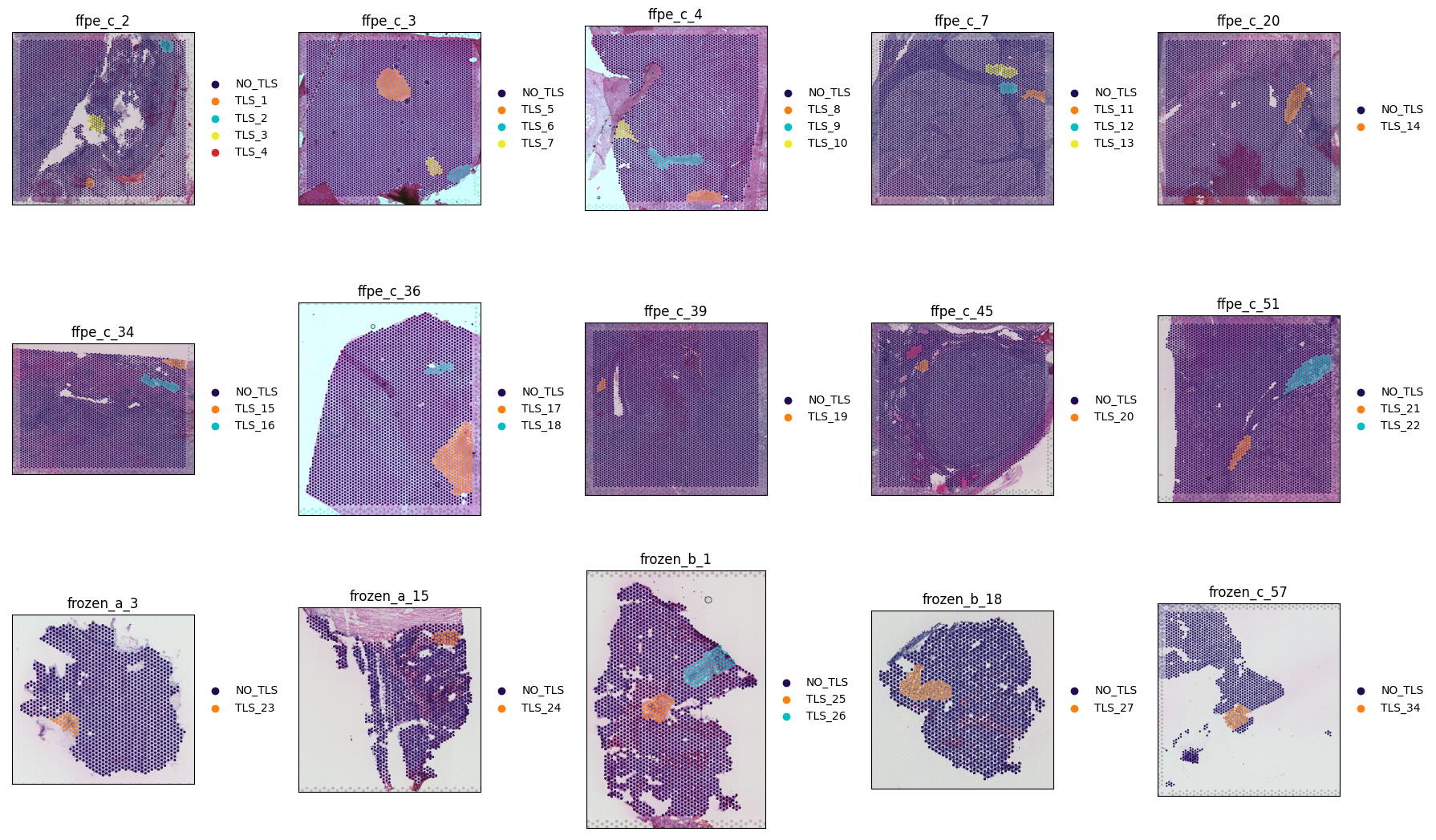

color_list = ['#210c52', '#ff7f0e', '#00bfc4', '#ebec23', '#d62728']
fig, axes = plt.subplots(nrows=3, ncols=5, figsize=(18, 11))
axes = axes.flatten()
for i, (sid, adata) in enumerate(zip(sample_ids, adata_list)):
    n_grp = len(np.unique(adata.obs['tls_group']))
    sc.pl.spatial(adata, color='tls_group', palette=color_list[:n_grp],
                  ax=axes[i], show=False, title=sid)
    axes[i].set_xlabel(''); axes[i].set_ylabel('')
fig.tight_layout()
plt.show()

2. Train QueST

trainer = QueSTTrainer(
    dataset=dataset, data_path=data_path,
    sample_ids=sample_ids, adata_list=adata_list,
    query_niches=None, query_sample_id=None,
    model_path=model_path,
    embedding_folder=embedding_folder,
    epochs=15, save_model=True,
    hvg=4000, min_count=None, normalize=True,
    seed=2024,
)

We also provided pretrained QueST model checkpoint weights at https://cloud.tsinghua.edu.cn/d/d649dc24501b4958905e/. To skip training and use pretrained checkpoint, simiply put it at corresponding model path and comment the “trainer.train()” line.

trainer.train()
trainer.inference(ckpt_path=model_path)

computing 3-hop subgraph (ffpe_c_2): 100%|██████████| 4510/4510 [00:07<00:00, 593.38it/s]
computing 3-hop subgraph (ffpe_c_3): 100%|██████████| 4755/4755 [00:08<00:00, 590.19it/s]
computing 3-hop subgraph (ffpe_c_4): 100%|██████████| 3829/3829 [00:05<00:00, 653.81it/s]
computing 3-hop subgraph (ffpe_c_7): 100%|██████████| 4975/4975 [00:08<00:00, 608.32it/s]
computing 3-hop subgraph (ffpe_c_20): 100%|██████████| 4948/4948 [00:07<00:00, 674.69it/s]
computing 3-hop subgraph (ffpe_c_34): 100%|██████████| 3585/3585 [00:05<00:00, 671.18it/s]
computing 3-hop subgraph (ffpe_c_36): 100%|██████████| 3206/3206 [00:04<00:00, 672.89it/s]
computing 3-hop subgraph (ffpe_c_39): 100%|██████████| 4940/4940 [00:07<00:00, 626.97it/s]
computing 3-hop subgraph (ffpe_c_45): 100%|██████████| 4562/4562 [00:07<00:00, 627.85it/s]
computing 3-hop subgraph (ffpe_c_51): 100%|██████████| 4359/4359 [00:06<00:00, 665.88it/s]
computing 3-hop subgraph (frozen_a_3): 100%|██████████| 1310/1310 [00:01<00:00, 669.54it/s]
computing 3-hop subgraph (frozen_a_15): 100%|██████████| 1264/1264 [00:01<00:00, 675.65it/s]
computing 3-hop subgraph (frozen_b_1): 100%|██████████| 1949/1949 [00:02<00:00, 673.54it/s]
computing 3-hop subgraph (frozen_b_18): 100%|██████████| 1186/1186 [00:02<00:00, 429.84it/s]
computing 3-hop subgraph (frozen_c_57): 100%|██████████| 1084/1084 [00:01<00:00, 659.40it/s]
training: 100%|██████████| 15/15 [12:14<00:00, 48.96s/epoch]

3. Extract per-TLS embeddings

tls_emb_dict = utils.get_subgraph_embedding(
    trainer.model, trainer.adata_list, trainer.feature_list, trainer.edge_ind_list,
    group_key='tls_group', exclude_values=['NO_TLS'],
)

TLS_GROUPS = {
    'Group A':  [f'TLS_{i}' for i in [11, 12, 13, 17, 18, 21, 22]],
    'Group B1': [f'TLS_{i}' for i in [1, 2, 4, 10, 14, 15, 16, 23, 34]],
    'Group B2': [f'TLS_{i}' for i in [3, 5, 6, 7, 8, 9, 19, 20, 24, 25, 26, 27]],
}
tls_adata = utils.wrap_subgraph_dict(tls_emb_dict, TLS_GROUPS)

4. Visualize the TLS embedding space

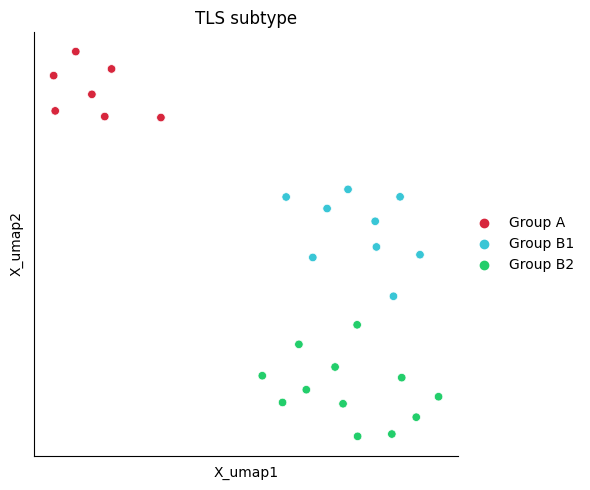

Hierarchical clustering of the 28 TLS embeddings yields three coherent subtypes:

• Group A (7 TLS) — stromal / fibrotic, associated with poor prognosis;

• Group B1 (9 TLS) — B-cell mature, GC-like;

• Group B2 (12 TLS) — inflamed / IFN-γ active.

utils.plot_niche_umap(
    tls_adata, color='group', figsize=(6, 5), size=100,
    palette={'Group A': '#d7263d', 'Group B1': '#39c6d6', 'Group B2': '#23ce6b'},
    frameon=True, edge_color='white', linewidths=0.5,
    hide_ticks=True, hide_spines=True,
    invert_x=True, invert_y=True,
    title='TLS subtype',
)
