Tutorial 3 Querying niches across different technologies

In this section, we conducted niche query experiments on a Mouse Olfactory Bulb Tissue (MOBT) dataset.

import os
os.environ['CUDA_VISIBLE_DEVICES'] = '0'
import sys
import logging
import warnings
import numpy as np
import scanpy as sc
import matplotlib.pyplot as plt

import sys, os
import quest.utils as utils
from quest.trainer import QueSTTrainer

from quest.trainer import QueSTTrainer
warnings.filterwarnings("ignore")
logger = logging.getLogger(__name__)
logging.basicConfig(level=logging.WARNING)

Read and explore the data

dataset = "MouseOlfactoryBulbTissue"
data_path = "../data/MOBT"
model_path = "../results/MOBT/model/quest_model.pth"
sample_ids = ["Stereo-seq", "10X", "Slide-seq V2"]
adata_list = [sc.read_h5ad(f"{data_path}/{data_id}.h5ad") for data_id in sample_ids]

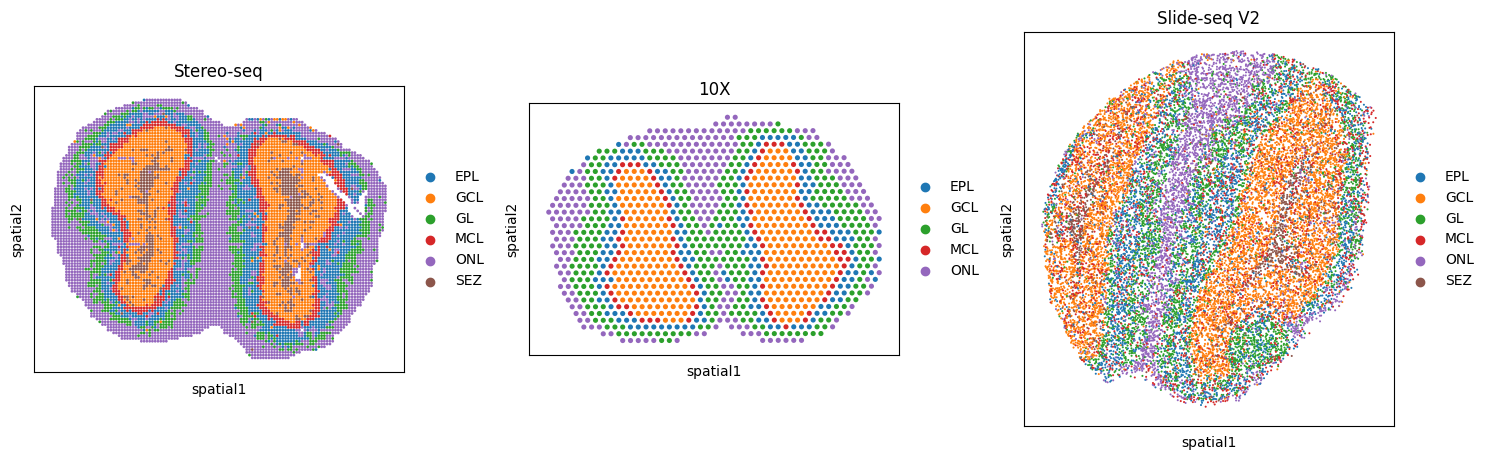

This dataset included three samples generated by 10X Visium, Stereo-seq, and Slide-seq V2 technologies, with spot radius of 50 μm, 35 μm, and 10 μm, respectively.

fig, axes = plt.subplots(ncols=3, nrows=1, figsize=(15, 5))
axes = axes.flatten()
for i, adata in enumerate(adata_list):
    spot_size = utils.get_spot_size(dataset=dataset, ref_id=adata.uns['library_id'])
    sc.pl.spatial(adata, color='layer', spot_size=spot_size, ax=axes[i], title=adata.uns['library_id'], show=False)
    axes[i].invert_yaxis()
fig.tight_layout()
fig.show()

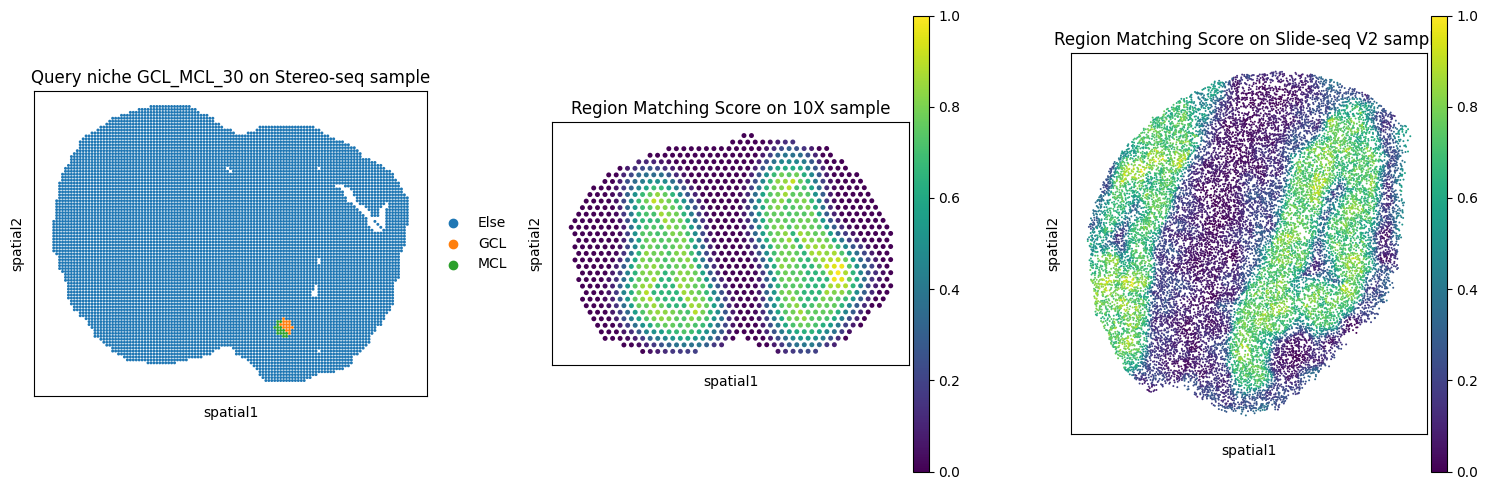

We set the interface of the GCL and MCL layers as the query niche.

fig, axes = plt.subplots(ncols=3, nrows=1, figsize=(15, 5))
axes = axes.flatten()

for i, adata in enumerate(adata_list):
    spot_size = utils.get_spot_size(dataset=dataset, ref_id=adata.uns['library_id'])
    if adata.uns['library_id'] == "Stereo-seq":
        sc.pl.spatial(adata, color="GCL_MCL_30_layer", spot_size=spot_size, ax=axes[i],
                      title="Query niche GCL_MCL_30 on Stereo-seq sample", show=False)
    else:
        sc.pl.spatial(adata, color='GCL_MCL_30_region_matching_score', spot_size=spot_size, ax=axes[i],
                      title=f"Region Matching Score on {adata.uns['library_id']} sample", show=False)
    axes[i].invert_yaxis()
fig.tight_layout()
fig.show()

Configure the niche query task

query_sample_id = "Stereo-seq"
query_niches = ['GCL_MCL_30_niche']

Set up QueST trainer

trainer = QueSTTrainer(dataset=dataset, data_path=data_path, sample_ids=sample_ids, adata_list=adata_list,
                       query_niches=query_niches, query_sample_id=query_sample_id,
                       model_path=model_path,
                       epochs=20, save_model=True, hvg=None, min_count=0, normalize=False)

Train QueST model

We also provided pretrained QueST model checkpoint weights at https://cloud.tsinghua.edu.cn/d/ab0cc439245a4e1f99dd/. To skip training and use pretrained checkpoint, simiply put it at corresponding model path and comment the “trainer.train()” line.

trainer.train()
trainer.inference(ckpt_path=model_path, save_embedding=False, query=True)

computing 3-hop subgraph (Stereo-seq): 100%|██████████| 8762/8762 [00:05<00:00, 1686.03it/s]
computing 3-hop subgraph (10X): 100%|██████████| 1185/1185 [00:00<00:00, 1758.54it/s]
computing 3-hop subgraph (Slide-seq V2): 100%|██████████| 18173/18173 [00:10<00:00, 1740.68it/s]
training: 100%|██████████| 20/20 [04:04<00:00, 12.22s/epoch]

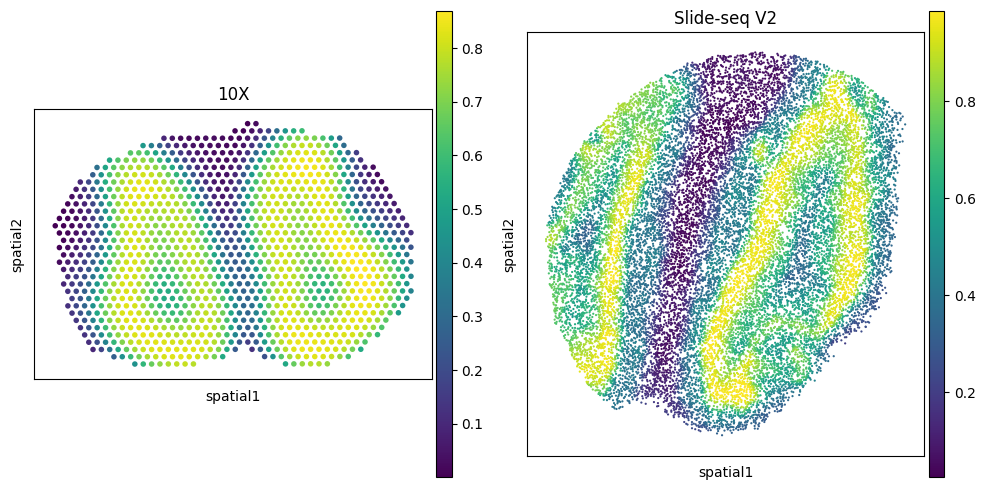

fig, axes = plt.subplots(ncols=2, nrows=1, figsize=(10, 5))
axes = axes.flatten()
query_niche = query_niches[0]
adata_ref = trainer.adata_ref_list[0]
for i, adata_ref in enumerate(trainer.adata_ref_list):
    spot_size = utils.get_spot_size(dataset, adata_ref.uns['library_id'])
    sc.pl.spatial(adata_ref, color=f"{query_niche} predicted matching score", ax=axes[i], show=False,
                  spot_size=spot_size, title=f"{adata_ref.uns['library_id']}")
    axes[i].invert_yaxis()
fig.tight_layout()
fig.show()
